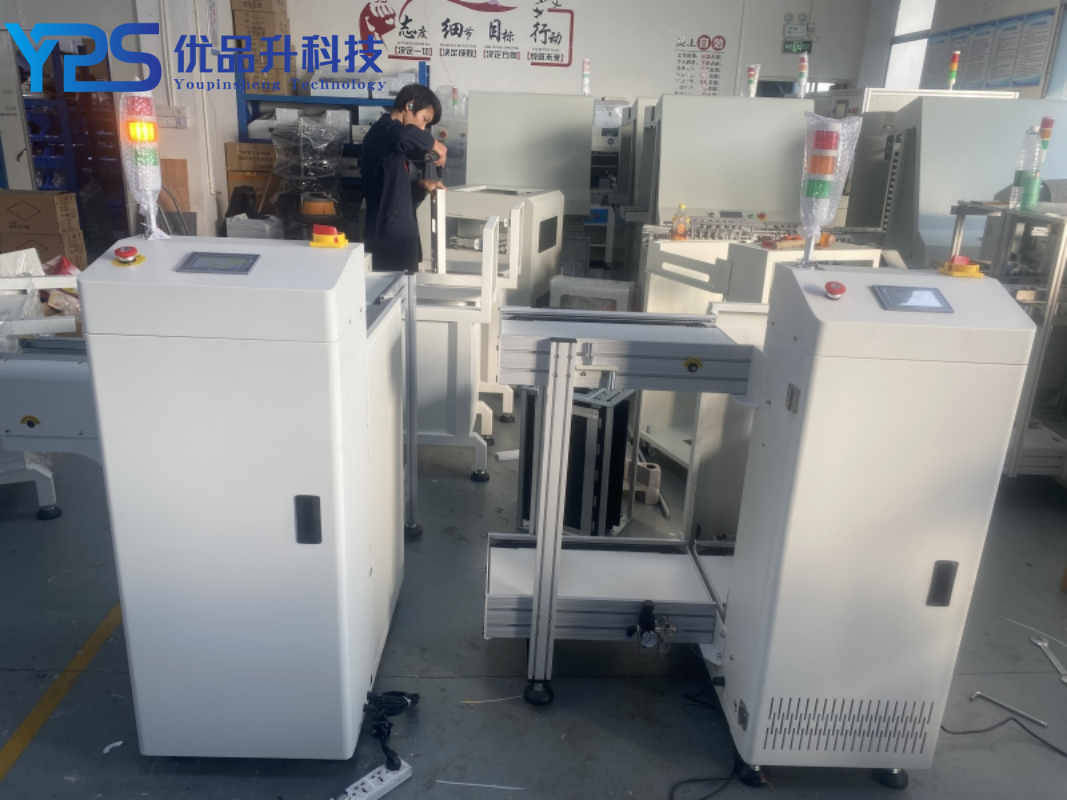

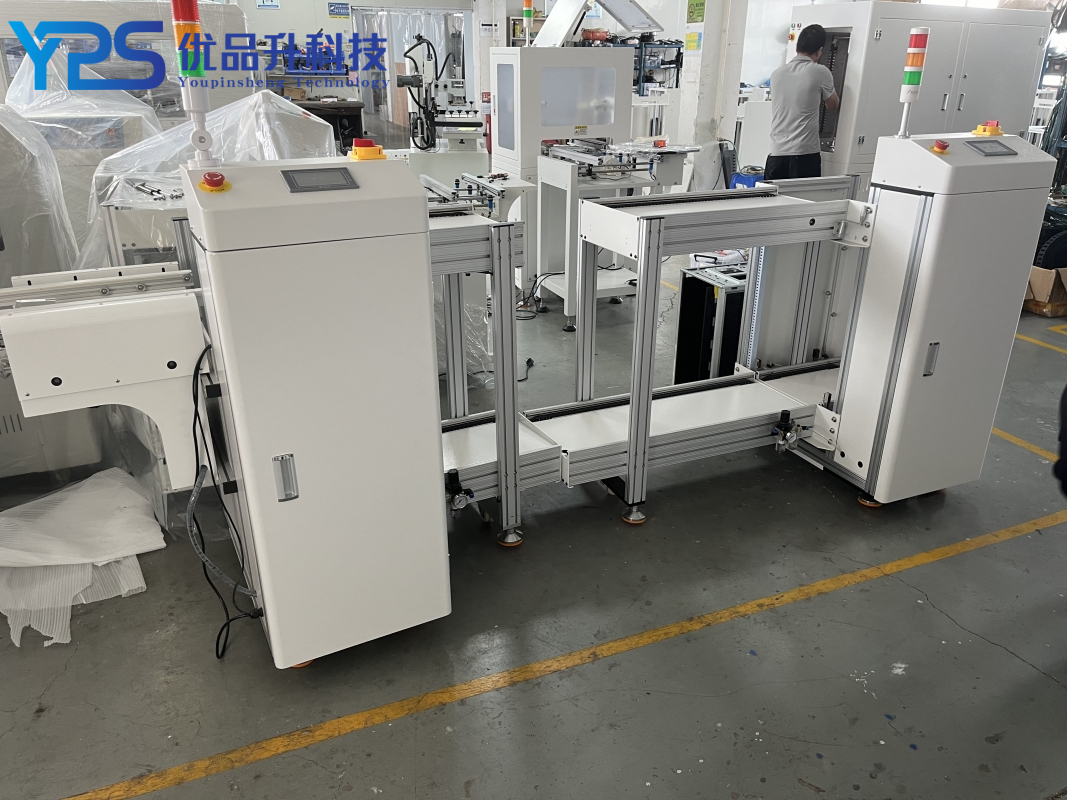

The PCB loading machine is a key equipment at the front end of the SMT (Surface Mount Technology) production line, used for the loading operation of circuit boards on the SMT production line. It automatically transfers the PCB board from the material frame to the production line, achieving automated production.
In the SMT production process, the PCB Loader is the starting point of the production line. It automatically sends the PCB board accurately to the working area of the SMT surface mount machine by receiving the board demand signal from the lower computer, effectively saving labor costs and avoiding errors and damages that may occur during the manual board loading process, thereby improving the efficiency and production quality of the production line.
Features of PCB Loader :
1. The PCB Loader adopts PLC control system and touch screen control panel.
2. The upper and lower pneumatic clamps can ensure more accurate positioning of the material box.
3. Using a cylinder to push the board can ensure that the PCB board is not damaged by collision The upper board action is reliable and error free.
4. Compatible with SMEMA interface.
5. Various sizes of models can be developed according to different sizes of PCBs for customers.
