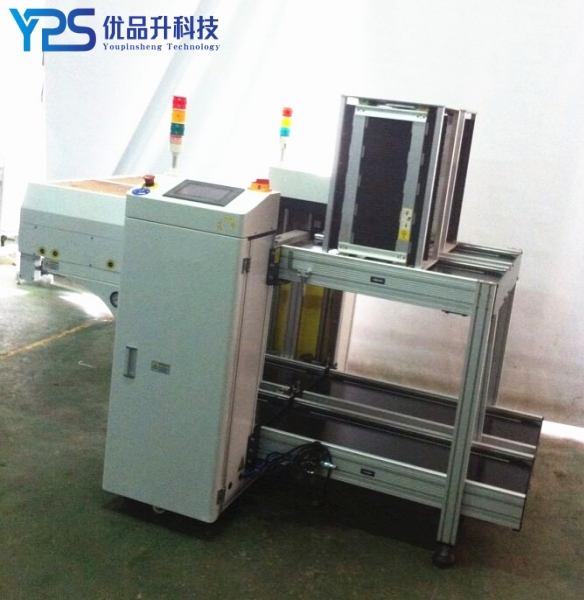

SMT automatic PCB NG/OK unloader machine

SMT automatic PCB NG/OK unloader machine Technical Parameters:

PCB NG/OK unloader machine Product Feature：

1.SMT automatic PCB NG/OK unloader machine structural principle of this machine is composed of an automatic lifting platform, a material tray inlet and outlet conveying section, and a translation screening mechanism;

2.PCB NG/OK unloader is equipped with two working modes. When the front-end detection equipment is directly connected, the machine can immediately be changed to a single track plate collector;

3. PCB NG/OK unloader adapt to the partition collection of good and defective products in the later stage of various SMT and DIP testing equipment.

4. SMT automatic PCB NG/OK unloader machine by selecting international brands of pneumatic and electrical components and reasonable structures, the lifespan is significantly extended.

5. Adopting high-performance PLC control, it has the characteristics of stable operation and stronger resistance to electromagnetic interference.

6.The large screen human-machine interface makes human-machine dialogue very convenient, simple, and provides clear monitoring of production status.

7.SMT automatic PCB NG/OK unloader machine signal and motor start are controlled by the original Omron intermediate relay and PLC from Japan, reducing the possibility of external signal sources causing damage to the machine.

8.Mingwei DC switch power supply provides independent power supply to ensure the power supply of photoelectric sensors and stepper motors, greatly improving equipment stability.

9.PCB NG/OK unloader the whole machine frame adopts δ 2MM cold-rolled steel plate laser processing+CNC stamping+carbon dioxide protection welding+spray coating process+fine assembly process, creating high-quality production equipment.

10.Standard equipment includes industry standard signal: SMEMA, which can be used for online automation and online operation with other devices;
